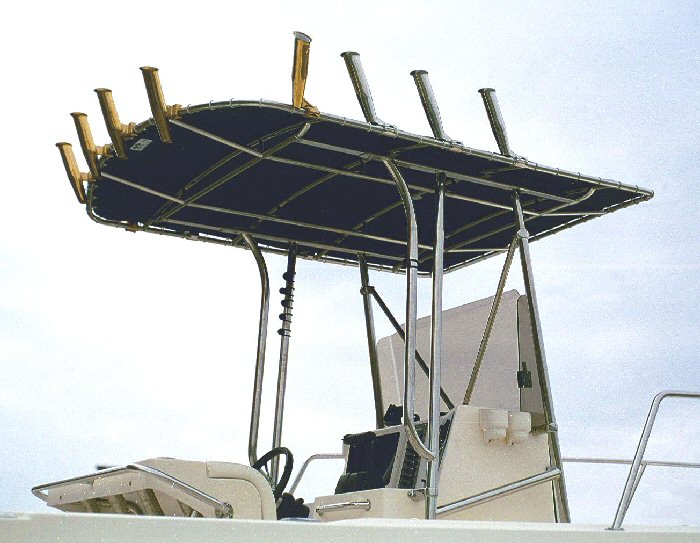

SMITH T-TOP KEY BENEFITS
  • PATENTED 100% 316 STAINLESS STEEL CONSTRUCTION
  • SHIPS BY COMMON CARRIER IN 2 FLAT CARTONS.
  • CLEAN AND SIMPLE BOLT TOGETHER ASSEMBLY.

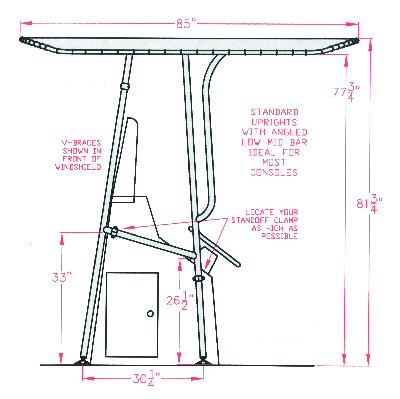

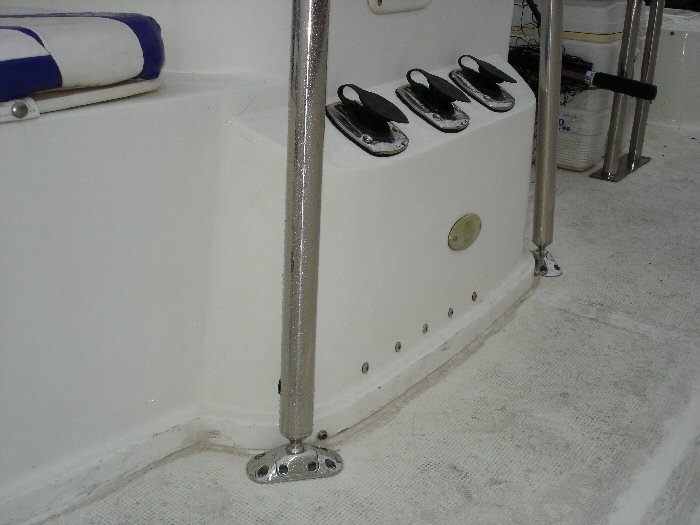

  • LEFT AND RIGHT UPRIGHTS ARE 100% WELDED 316 STAINLESS 1-1/2" TUBE, PROVIDING 78" CLEAR UNDER THE CANOPY.
  • CANOPY IS 100% WELDED 316 STAINLESS, 1" TUBE, 60"W X 85"L WIDE SELECTION OF CANOPY COVERS AVAILABLE,MADE FROM DURABLE SUNBRELLA.
  • STYLED FOR MOST CENTER CONSOLE BOATS. FITS MOST CONSOLES UP TO 50" WIDE.
  • WIDER IF UPRIGHTS ARE INCLINED. CUSTOMERS REPORT INSTALLATION TIMES ON THEIR BOAT OF 3 - 5 HOURS. LATERALLY ADJUSTABLE UPRIGHTS COMBINE WITH A UNIQUE BRACING SYSTEM TO GIVE A CUSTOM LOOK

    $1,299 PACKAGE INCLUDES:

    - (1) T-top Canopy Assembly - 1" 316 SS tube frame
    - (1) Right Side Legs (1-1/2" diameter 316 SS tube) angled 3 degrees left
    - (1) Left Side Legs (1-1/2" diameter 316 SS tube) angled 3 degrees right
    - (2) Front Brace Bar with Clamp
    - (1) Fastener Kit

    • 6 - 3/8" Nylon Lock Nuts
    • 16 - No. 14 1-1/2" Phillips Oval Hd Screws
    • 6 - 3/8" X 2" Socket Hd Screw
    • 6 - 3/8" x 1" Washers
      - Console Front Casting (with stainless mounting hardware)
      - Console Top Casting (Includes SS hardware: 4 bolts, 4 nuts, 4 washers)



    AVAILABLE OPTIONS
    black canvas Black T-Top Canvas

    $250
    Pacific blue canvas Pacific Blue T-Top Canvas
    Navy blue canvas Dark Navy Blue T-Top Canvas
    teal Teal T-Top Canvas
    burgundy Burgundy T-Top Canvas

    natural

    		 Natural T-Top Canvas

    		C.E. Smith T-Top Storage Bag

    $69

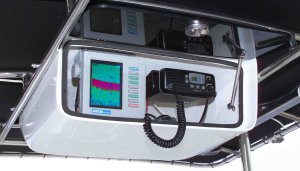

    Smith Electronics Box $320

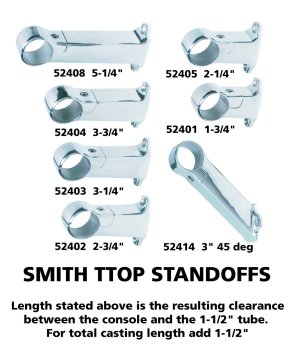

    Smith 1 3/4" Standoff Clamp $35
    Smith 2 1/4" Standoff Clamp $35
    Smith 2 3/4" Standoff Clamp $35
    Smith 45 Degree 3" Standoff Clamp $35
    Smith 5 1/4" Standoff Clamp $35
standoff1

standoff2

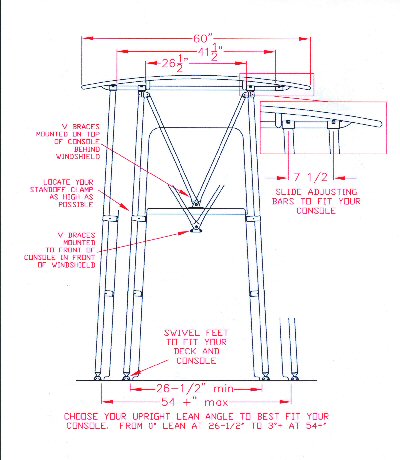

  • UNIQUE FRONT V-BRACE SYSTEM ACCOMODATES A WIDE RANGE OF CONSOLE HEIGHTS AND WINDSHIELD ARRANGEMENTS LANDING THE V-BRACE ON THE FRONT OR ON TOP OF THE CONSOLE.
  • PATENTED BOLT TOGETHER DESIGN ALLOWS THE Ttop TO FLEX EVENLY ACROSS THE ENTIRE FRAME. DISTRIBUTING THE NATURAL STRESS AND VIBRATATION PRESENT ON EVERY BOAT ACROSS THE ENTIRE Ttop PREVENTS STRESSES FROM BUILDING UP AT ANY ONE POINT. ON 100% WELDED T-top, THIS SAME VIBRATION CONCENTRATES AT STIFF WELDED JOINTS OFTEN CAUSING THEM TO CRACK.
  • INTEGRATED HAND HOLDS
  • NAVIGATION LIGHT BRACKET ACCOMODATES MOST LIGHTS.
  • WIREWAYS FOR LIGHTS AND ANTENNA WIRING PROVIDED.


1

2
